Deformation and Calibre measurement system DKM

DKM150
Exact measurement of the pipe diameter




Deformation and Calibre Measurement System DKM - Exact measurement of the pipe diameter

OPTIMESS DKM is a system for deformation and calibre measurement separately or in combination with CCTV inspection for sewer networks. The system's measuring probe scans the surface of the pipe and measures the diameter in the vertical and the horizontal plane.

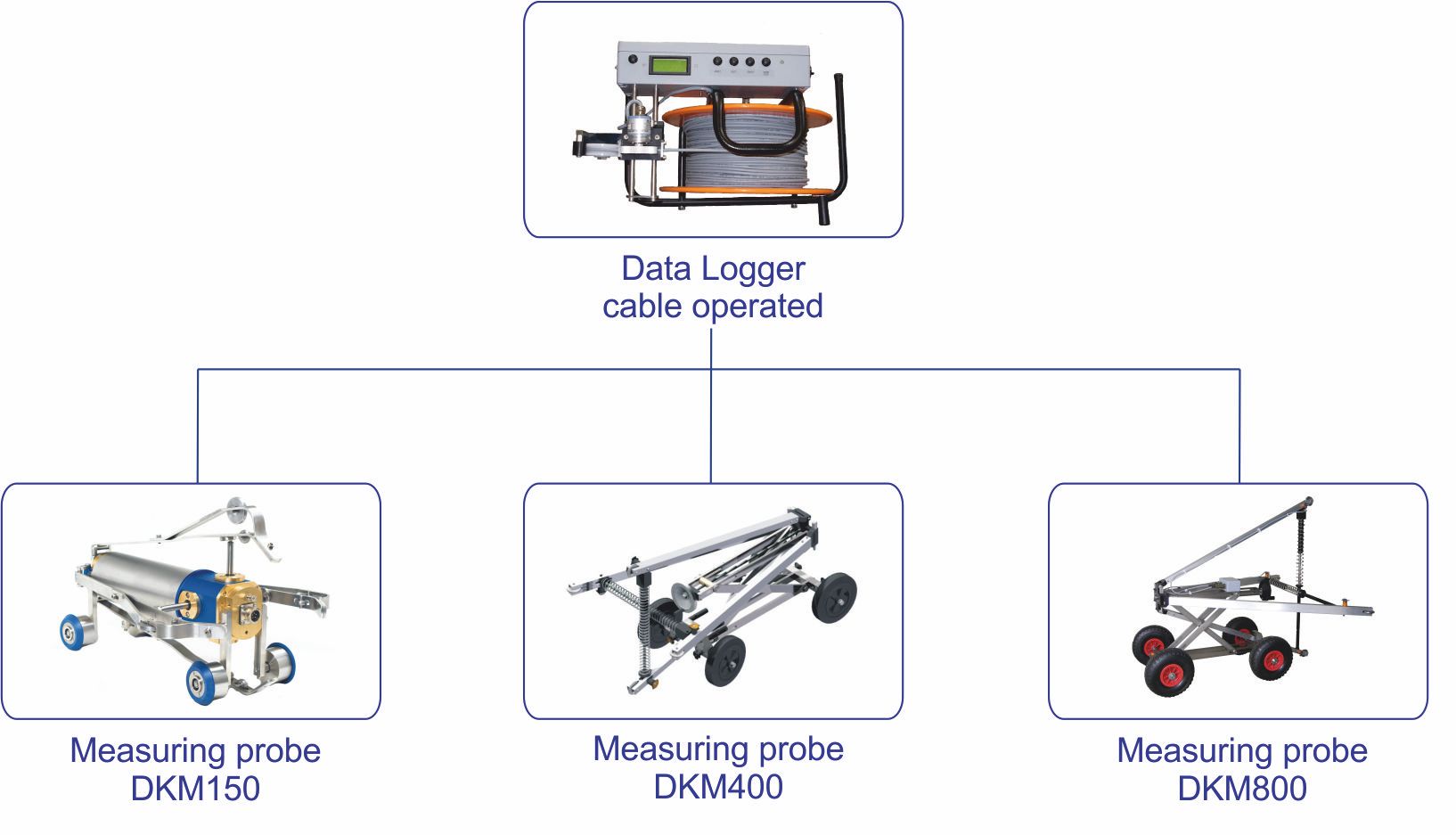

System overview of the OPTIMESS DKM

System overview DKM



Exact - Rugged - Cost efficient

  • Suitable for pipes from 150mm pipe diameter
  • Measuring probes can be connected to all CCTV Inspection systems or the probes are pulled by winch or pipe cleaning system
  • Cable operated measurement
  • Exact measurement under nearly all environmental conditions: water, humidity and steam; pipe material is also irrelevant
  • Reliable measuring results during temperature variations
  • User-friendly evaluation software DKMSoft
DKM150

Measuring probe DKM150

  • Measuring range from 150mm to 400mm
  • High measuring accuracy 1mm for each inner diameter
  • Continuous measurements for the complete measuring distance
  • Calbre measurements for all kind of pipelines
  • Deformation measurement of plastic pipes
  • Quality control after rehabilitation works
  • Calibration certificate, valid for 12 months
 DKM400

Measuring probe DKM400

  • Measuring range from 450mm up to 800mm
  • High measuring accuracy 1mm for each pipe diameter
  • Continuous measurements for the complete measuring distance
  • Calibre measurement for all kind of pipelines
  • Deformation measurement of plastic pipes
  • Quality control after pipe rehabilitation works
  • Calibration certificate, valid for 12 months
 DKM800

Measuring probe DKM800

  • Measuring range from 450mm up to 1,200mm
  • High measuring accuracy 1mm for each pipe diameter
  • Continuous measurements for the complete measuring distance
  • Calibre measurement for all kind of pipelines
  • Deformation measurement of plastic pipes
  • Quality control after pipe rehabilitation works
  • Calibration certificate, valid for 12 months
 DKM DL

Data Logger with cable drum

  • Power supply by accumulator
  • LCD-Display for control and data display
  • Cable drum with capsulated and gold-coated slip rings
  • Special cable
  • Electronic meter counter
  • 150m cable
  • Charging device is included in delivery
 DKMSoft

Evaluation software DKMSoft

  • Data transmission from the Data Logger
  • Data management under Windows
  • Analysis and calculation
  • Default tolerances
  • Automatic diameter determination
  • Graphical display with tolerance indication
  • Issue of a protocol
  • Data output in a PDF-file
